Wood Types & Quality Standards

All sample doors have a clear CV finish in flat 5% Sheen

Alder

Select Alder

A select product with consistent color. No *Bark Pockets allowed on the front or back of Door products. Bark pockets & other defects are acceptable in the back of Drawer Front & End Panel products (Including DF slabs). Pin knots no bigger than 5mm are allowed on the back of Door products

Sample Profiles: P1, SR1 3/8, OE2

Knotty Alder

Sound *Knots, *Pith & other rustic characteristics with some color variation. No yellow streaking on the face more than 1” long - yellow streaking is acceptable on the back. Shake*, Large open knots & soft rotten knots are not acceptable on the face in Doors & Drawer Fronts (including slabs)

Sample Profiles: P2, SR2, OE5

Band Sawn

Knotty Alder

*Knots, *Pith & other rustic characteristics with some color variation. No yellow streaking on the face more than 1” long - yellow streaking is acceptable on the back. Shake* & soft rotten knots are not acceptable on the face in Doors & Drawer Fronts (including slabs). All products made of Band Sawn Knotty Alder must be textured on at least 95% of the face.

Sample Profiles: P1. SR13, OE20

Circle Sawn

Knotty Alder

*Knots, *Pith & other rustic characteristics with some color variation. No yellow streaking on the face more than 1” long - yellow streaking is acceptable on the back. Shake* & soft rotten knots are not acceptable on the face in Doors & Drawer Fronts (including slabs). All products made of Circle Sawn Knotty Alder must be textured on at least 95% of the face.

Sample Profiles: P7, SR1 5/16, OE7

* Additional wood types:

Circle Sawn Select Alder-Not Pictured

Wire Brushed Knotty Alder-Not Pictured

Beech

Select Beech

A select product with consistent color. No *Mineral streaks on the face, mineral streaks are expected on the back of any product made from Select Beech.

Sample Profiles: P3, SR3, OE5

Rustic Beech

Knots, *Bark Pockets & other rustic characteristics.

No *Knotholes.

Sample Profiles: P4, SR3, OE6

* Additional wood type: Paint Grade Beech -Not Pictured

A clear product with any amount of color variation & mineral streaks. No unfilled cracks, voids, *Knots, *Worm holes or *Pin Knots allowed on the face.

Birch

White Birch

A select product with an all “white” face. No *Knots, *Pin Knots, or cracks allowed on the face. *Heartwood & *Mineral Streaks are acceptable on the back & sides of all products made from White Birch. *Pin Knots under 3mm are acceptable on the back. No *Figure/Curl on the face. Darker pink colored wood is not acceptable.

Sample Profiles: P7, SR1/SR25, OE7

Natural Birch

A select product with a calico mix of *Sapwood & *Heartwood. No *Mineral Streaks on the face. No *Pin Knots on the face. No *figure/curl on the face.

Sample Profiles: P7, SR1/SR17, OE7

Cherry

Select Cherry

A select product with consistent color. No *Sapwood on the face, sapwood is expected on the back & sides of any product made from Select Cherry. Less than 5% *Figure/Curl on the face is acceptable.

Sample Profiles: P5, SR13, OE31

Rustic Cherry

Knots, *Gum, *Figure & rustic characteristics with light color variation. No *sapwood on the face, sapwood is expected on the back & sides of any product made from Rustic Cherry. No yellow or pale colored rot on the face.

Sample Profiles: P7, SR1 5/16, OE7

Hickory

Select Hickory

A select product with a calico mix of *Sapwood & *Heartwood. No *Mineral Streaks on the face. No *Sap Stain on the face. No *Pin Knots on the face. Less than 5% *Figure/Curl on the face is acceptable

Sample Profiles: P7 R, SR1 3/8, OE8

Rustic Hickory

A calico mix of *Sapwood & *Heartwood with knots, *Bark Pockets, *Mineral Streaks & other rustic characteristics. No *Knotholes or see through knots.

Sample Profiles: P8, SR21, OE22

Heart Select Hickory

A select product with consistent color and an all brown face. No *Mineral Streaks, *Sapwood or *Pin Knots on the face.

No *figure/curl on the face.

Sample Profiles: P11, SR1 3/8, OE30

Heart

Rustic Hickory

An all brown face with Knots, *Bark Pockets, *Mineral Streaks & other rustic characteristics. No *Knotholes or see through knots. No *Sapwood on the face. Sapwood is expected on the back & sides of any product made from Rustic Heart Hickory.

Sample Profiles: P13, SR23, OE17

Circle Sawn

Rustic Hickory

A calico mix of *Sapwood & *Heartwood with knots, *Bark Pockets, *Mineral Streaks & other rustic characteristics. No *Knotholes or see through knots. All products made of Circle Sawn Rustic Hickory must be textured on at least 95% of the face.

Sample Profiles: P7, Sr1/Sr19, OE7

* Additional wood type: Band Sawn Rustic Hickory -Not Pictured

A calico mix of *Sapwood & *Heartwood with knots, *Bark Pockets, *Mineral Streaks & other rustic characteristics. No *Knotholes or see through knots. All products made of Band Sawn Rustic Hickory must be textured on at least 95% of the face.

Maple

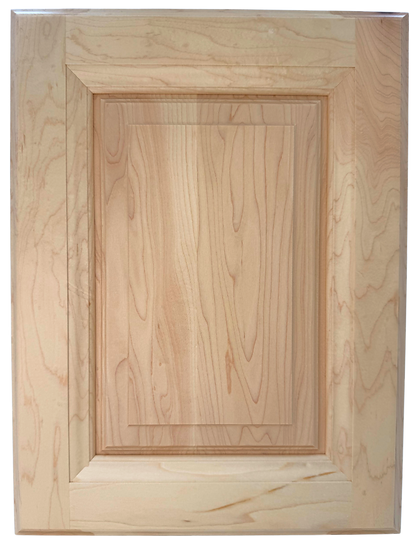

Select Maple

A select product with an all white face. No *Knots, *Pin Knots, or cracks allowed on the face. *Heartwood & *Mineral Streaks are acceptable on the back & sides of all products made from Select Maple. *Pin Knots under 5mm are acceptable on the back. No *Figure/Curl on the face.

Sample Profiles: P14, SR17, OE17

Rustic Maple

A calico mix of *Sapwood & *Heartwood with knots, *Bark Pockets, *Mineral Streaks & other rustic characteristics. No *Knotholes or see through knots.

Sample Profiles: P15, SR21, OE22

Soft White Maple

A select product with an all White face. No *Knots, *Pin Knots,*Heartwood or cracks allowed on the face. *Heartwood & *Mineral Streaks are acceptable on the back & sides of all products made from Soft White Maple. *Pin Knots under 5mm are acceptable on the back.

Sample Profiles: P17 1/8, SR 1 3/8, OE9

Wormy Maple

Soft White Maple with Worm holes & gray/brown streaks extending from the worm holes. No *Knots or *Pin Knots on the face.

Sample Profiles: P 18, SR6, OE20

* Additional wood type: Paint Grade Maple -Not Pictured

A select product with any amount of color variation & mineral streaks. No unfilled cracks, voids, *Knots, *Worm holes or *Pin Knots allowed on the face.

Red Oak

Select Red Oak

A select product with consistent color. No *Sapwood or *Mineral streaks on the face, sapwood & mineral streaks are expected on the back & sides of any product made from Select Red Oak. No *figure/curl on the face.

Sample Profiles: P19, SR13, OE21

Rustic Red Oak

Knots, *Pith, *Bark pockets & other rustic characteristics. No *Sapwood on the face, sapwood is expected on the back & sides of any product made from Rustic Red Oak. No soft rotten knots or *Knotholes.

Sample Profiles: P20 3/16, SR3, OE 15

Rift Sawn

Red Oak

A select, straight grained product with consistent color. No *Sapwood or *Mineral streaks on the face, sapwood & mineral streaks are expected on the back & sides of any product made from Rift Sawn Red Oak. No *figure/curl on the face.

Sample Profiles: P6, SR6, OE6

Quarter Sawn

Red Oak

A select product with pronounced *Medullary Rays across the face. No *Sapwood or *Mineral streaks on the face, sapwood & mineral streaks are expected on the back & sides of any product made from Quarter Sawn Red Oak.

Sample Profiles: P7, SR5, OE 24

White Oak

Select White Oak

A select product with consistent color. No *Sapwood or *Mineral streaks on the face, sapwood & mineral streaks are expected on the back & sides of any product made from Select White Oak. No *figure/curl on the face.

Sample Profiles: P10, SR4, OE19

Rustic White Oak

Knots, *Pith, *Bark pockets & other rustic characteristics. No *Sapwood on the face, sapwood is expected on the back & sides of any product made from Rustic White Oak. No soft rotten knots or *Knotholes.

Sample Profiles: P7, SR7, OE13

Rift Sawn

White Oak

Sample Profile: P7, SR9, OE10

Quarter Sawn

White Oak

Sample Profile: P7, SR8, OE4

Poplar

Poplar-Paint Grade

A select product with any amount of color variation & mineral streaks. No unfilled cracks, *Knots, *Worm holes or *Pin Knots allowed on the face. Color variation & mineral streaks are acceptable on any product made from Paint Grade Poplar.

Sample Profiles: P7, SR12, OE24

Walnut

Select Walnut

A clear product with consistent color. No *Sapwood on the face, sapwood is expected on the back & sides of any product made from Select Walnut. No *figure/curl on the face.

Sample Profiles: P7, SR15, OE23

Rustic Walnut

Knots, *Pith, *Bark Pockets, *Figure & other rustic characteristics. No *Sapwood on the face, sapwood is expected on the back & sides of any product made from Rustic Walnut. No soft rotten knots.

Sample Profiles: P7, SR19, OE18

*Additional Wood Type: Band Sawn Rustic Walnut- Not Pictured

Additional
Wood Types

Barnwood

Reclaimed Pine & Fir in varying shades of gray.

Blended color face with any amount of Moss, Hair, *Knots, *Pin Knots & Feces. See through knots & *Knot holes must be epoxied, but nail holes can be left open.

Sample Profiles: P7, SR1 5/16, OE7

Vertical Grain Fir

A select product with straight vertical grain & blended color. No *Knots, *Pin Knots or *Pitch Pockets on the face.

Sample Profiles: P7, SR1/SR17, OE27

Select Pine

A select product with consistent color. No *Pitch Pockets or *Pin Knots on the face.

Color will vary a bit throughout the grain. *Pitch Pockets are acceptable on the back of all products made from Select Pine.

Sample Profiles: P7, Little Grassy 2 3/4

Knotty Pine

*Knots, *Pitch Pockets & other rustic characteristics. No *Knot Holes or see through knots.

Color can vary in Knotty Pine, but must be blended.

Sample Profiles: P7, Roman Nose 3

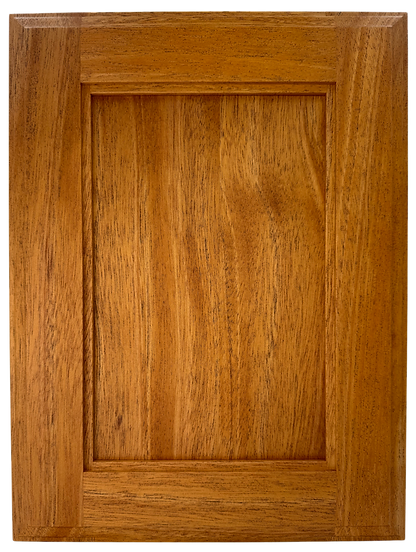

African Mahogany

A select product with straight, *Ribbon Grain pattern & blended color. No *Sap Wood or *Pin Knots on the face. No *Plain Sawn grain pattern on the face. *Sap Wood, *Pin Knots & varying grain patterns are acceptable on the back & sides of all products made from African Mahogany.

Sample Profiles: P7, SR20, OE12

Sapele

A select product with straight, *Ribbon Grain pattern & consistent, blended color.

No *Sap Wood or *Pin Knots on the face. No *Plain Sawn grain pattern on the face.

*Sap Wood, *Pin Knots & varying grain patterns are acceptable on the back & sides of all products made from Sapele.

Sample Profiles: P7, SR19 No Step, OE11

HDF & MDF MAterial Specs

HDF (High-Density Fiberboard) is an engineered wood product known for its strength and smooth surface. It's made by breaking down hardwood or softwood residuals into wood fibers, then compressing them with resin and heat.

In house we use "Weyerhaeuser Glacier Green High Density Machining Grade MDF is custom formulated for demanding profiled finishing applications"

Our HDF (HDM) is a great, cost-effective option for your routed or slab, painted door and drawer front need.

MDF (Medium-Density Fiberboard) is made by a similar process, though not as dense in the core as HDF, is a great, cost-effective option for a 1/4" panel material in a paint grade 5- piece door.
